Device Binding

The Device Binding flow provides a secure method to meet the BSI TR-03161 requirements for the substantial security level. Next to its high level of security it also allows for very user friendly authentication flows. It supports the following authentication methods:

  • Username/ Password
  • Email/Password

Foundation​

The implementation of Device Binding is based on the gematik specification for Sectoral IDP Auth Apps, for more information see here.

It is supported by:

  • Google Play Attestation/Integrity

and

  • Apple App Attest

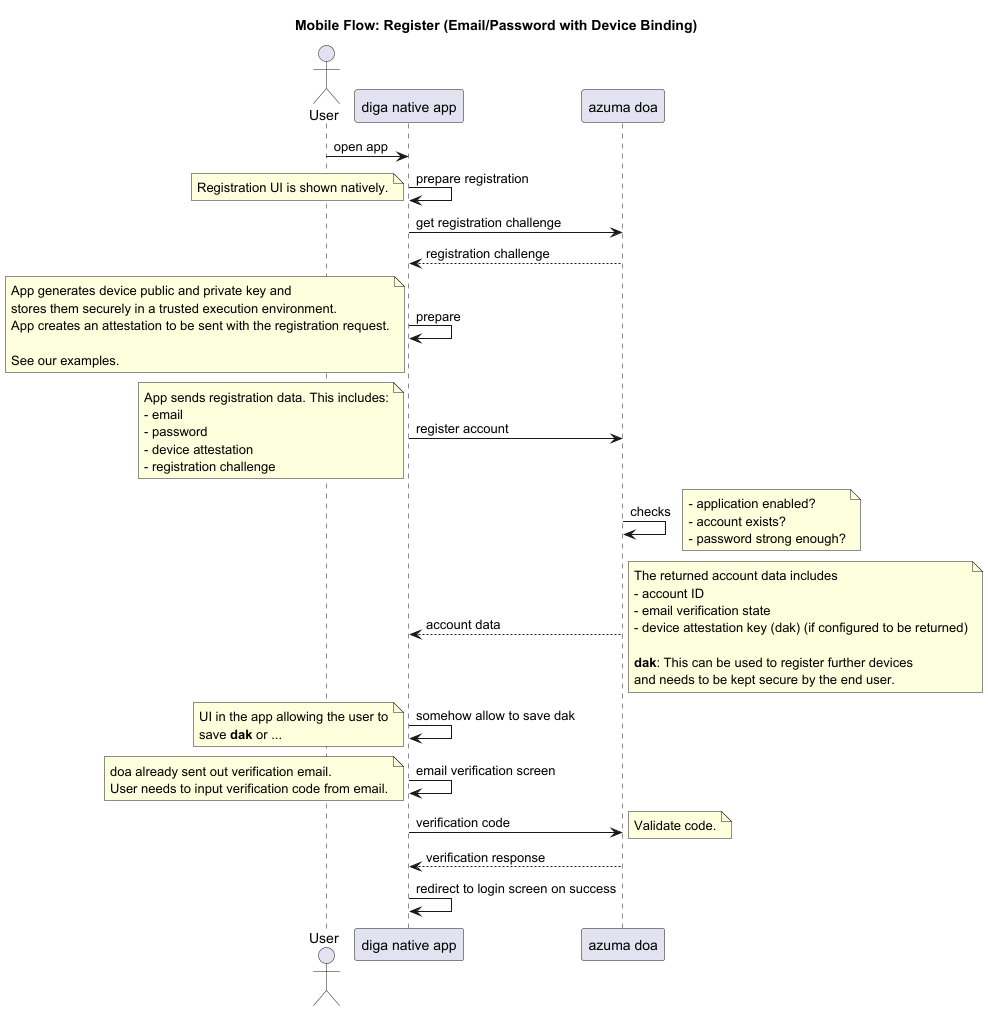

Registration Flow​

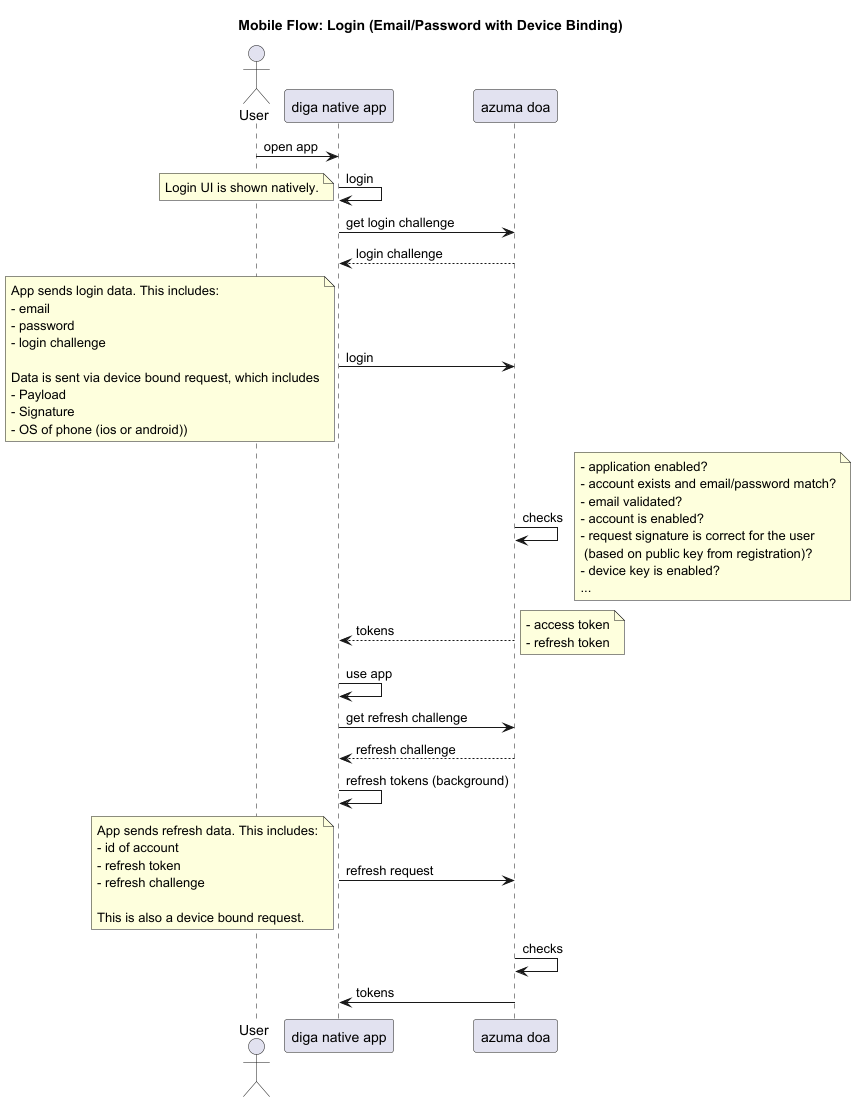

Login Flow​

Health-ID​

What is the HealthID

For more information on the German HealthID please visit the gematik website

The Device Binding flow enables linking Health-ID via azuma mimoto. The general approach is as follows:

  • Integrate Health-ID with the native mobile flow, so that you arrive at "Identity Token returned" from azuma mimoto.
  • With the Identity Token, you can register/login against azuma doa by using the appropriate APIs.

Required configuration​

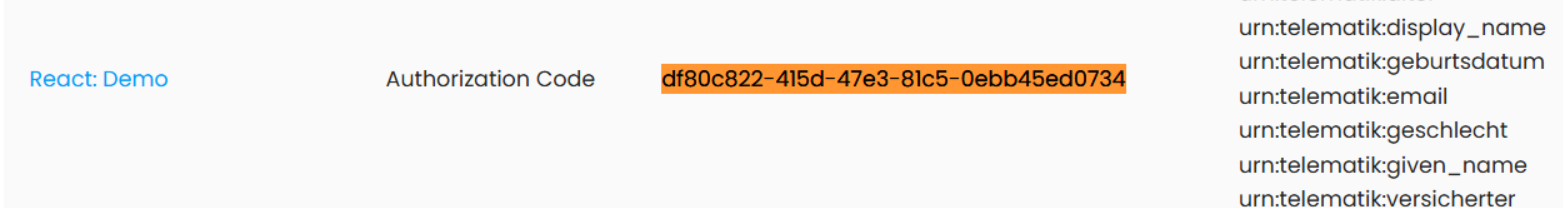

For Health-ID integration with azuma mimoto to work in azuma doa, a correct Audience configuration is required. The used azuma mimoto client IDs need to be configured in azuma doa Tenant Administration as allowed Audiences.

Example:

Client-ID in azuma mimoto:
